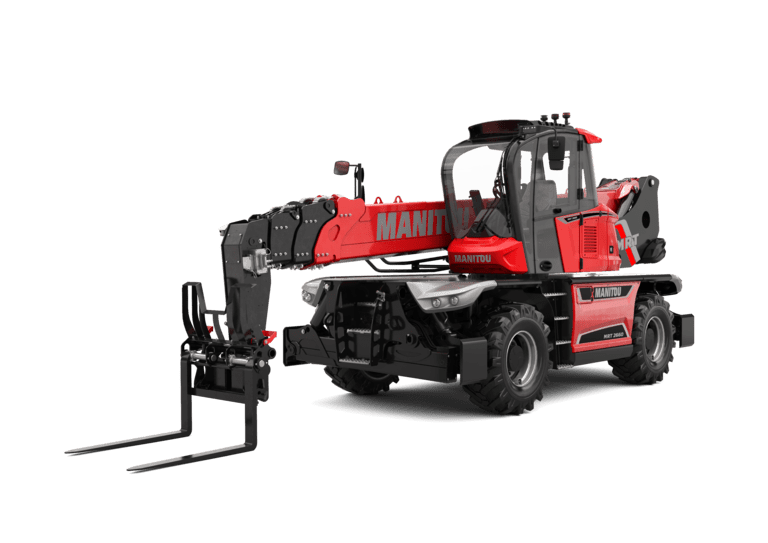

Manitou MRT 2660

🟥 | Rotating Telehandler

DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE Manitou MRT 2660

Read More

Capacities

Description Unit
Max. Capacity 6,000 kg
Max. Lifting Height 25.90 m
Max. Outreach 21.70 m

Weight & Dimensions

Description Unit
Overall Length (With Forks) 9.28 m
Length to Face of Forks 8.08 m
Overall Width 2.50 m
Overall Height 3.10 m
Overall Cab Width 0.96 m
Ground Clearance 0.38 m
Wheelbase 3.05 m
Tilt-Up Angle 12 °
Tilt-Down Angle 110 °
Turret Rotation 360 °
Overall Weight 18,000 kg
Forks Length / Width / Section 1,200 mm x 100 mm x 60 mm

Wheels

Description Unit
Standard Tyres 445/65 R22,5
Drive Wheels (Front / Rear) 2 / 2
Steering Mode 2-wheel steer, 4-wheel steer, Crab mode

Stabilisers

Description Unit
Stabs Type Telescopic Duplex
Controls with Stabs Stabs Commands Individual or Simultaneous

Engine

Description Unit
Engine Brand Yanmar
Engine Norm Stage V / Tier 4
Engine Model 4TN107FHT-6SMU1
I.C. Engine Power Rating / Power 156 Hp / 115 kW
Max. Torque / Engine Rotation (Min) 602 Nm @ 1,500 rpm
Number of Cylinders — Capacity of Cylinders 4 — 4,567 cm³
Engine Cooling System Water cooled

Electric Circuit

Description Unit
Number of Batteries / Battery Voltage 2 x 12 V
12V Battery Capacity 120 Ah
Battery Starting Current (EN)850 A

Transmission

Description Unit
Transmission Type Hydrostatic
Gearbox / Number of Gears (Forward) / Number of Gears (Reverse) Speedshift / 2 / 2
Max. Travel Speed 40 km/h
Drawbar Pull 8600 daN
Parking Brake Automatic negative parking brake
Service Brake Oil-immersed multi-discs braking on front & rear axles

Performances

Description Unit
Gradeability (Laden / Unladen) 40.40 % / 45.50 %

Hydraulics

Description Unit
Hydraulic Pump Type Variable displacement pump
Hydraulic Flow 185 l/min
Hydraulic Pressure 350 bar

Tank Capacities

Description Unit
Engine Oil 13 l
Fuel Tank 270 l
Diesel Exhaust Fluid (AdBlue® Type) 24 l

Noise & Vibration

Description Unit
Noise at Driving Position (LpA) 68 dB
Noise to Environment (LwA) 108 dB
Vibration on Hands/Arms < 2.50 m/s²

Miscellaneous

Description Unit
Steering Wheels (Front / Rear) 2 / 2
Controls 2 Joysticks
Safety Cab Homologation Cabin ROPS — FOPS level 2
Attachment Recognition System (E-Reco) Standard
Manitou MRT 2660 on Lowered Stabilisers with Extensible Jib with Winch (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Extensible Jib with Winch (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 1,500 kg with Winch (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 1,500 kg with Winch (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 365 kg Platform (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 365 kg Platform (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 3D Positive-Negative (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 3D Positive-Negative (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Forks (CAF) (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Forks (CAF) (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Hook 6,000 kg (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Hook 6,000 kg (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Winch 6,000 kg (Metric)
Manitou MRT 2660 on Lowered Stabilisers with Winch 6,000 kg (Metric)
Manitou MRT 2660 Machine on Tyres with Forks (Metric)
Manitou MRT 2660 Machine on Tyres with Forks (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 1,000 kg Platform (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 1,000 kg Platform (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 3D Positive (Metric)
Manitou MRT 2660 on Lowered Stabilisers with 3D Positive (Metric)
