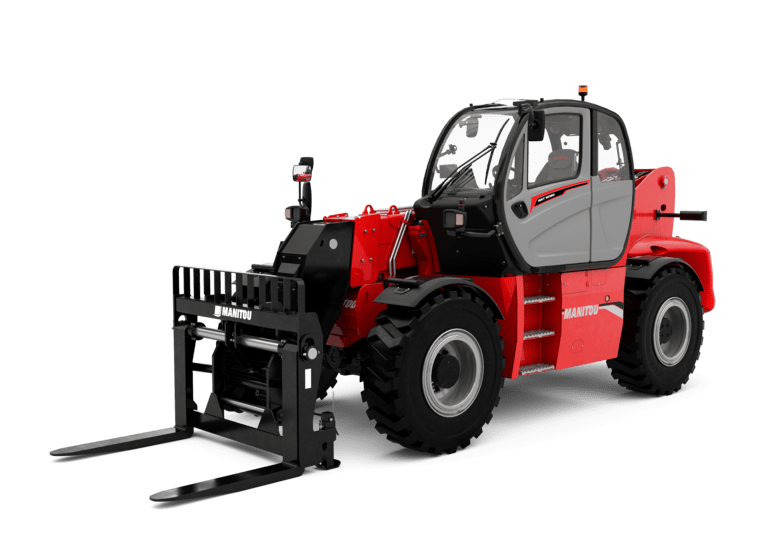

Manitou MHT 10160 ST5

Presenting the impressive MHT 10160, a telescopic handler engineered to excel in heavy lifting tasks. With an extraordinary capacity of 16 tonnes and a maximum lifting height of 10 meters, this machine is a true powerhouse. Equipped with a robust 173 hp engine and a hydrostatic transmission, the MHT 10160 ensures precise movements and efficient performance, making it the perfect choice for handling heavy and bulky loads with ease and safety on any terrain. The MHT 10160 is a versatile machine that can be equipped with a wide range of attachments, including forks, a positioner, a hook and winch, a shovel, a man basket, tyre grippers, cylinders, and tubes. This adaptability allows it to seamlessly tackle diverse tasks in various industries. Comfort and convenience are paramount, and the MHT 10160 delivers on both fronts. Its panoramic and ergonomic cab provides a comfortable and spacious working environment for operators. Easy Step access, a JSM joystick, and a colour touch-screen display enhance the overall user experience, ensuring effortless and intuitive operation. In conclusion, the MHT 10160 telescopic handler is a true heavy-lifting champion, designed to handle demanding tasks with precision, safety, and comfort. Its versatility and powerful performance make it an invaluable asset on any worksite, transforming handling operations into efficient and seamless processes. For heavy-duty lifting needs, the MHT 10160 is the ultimate solution that guarantees exceptional results and peace of mind.

LEARN MORE ABOUT THE Manitou MHT 10160 ST5

Read More

Capacities


Description Unit
Max. capacity 16,000 kg
Load center of gravity 600 mm
Max. lifting height 9.60 m
Max. outreach 5.20 m

Weight & Dimensions


Description Unit
Overall length 7.35 m
Unladen weight (with forks) 21,500 kg
Ground clearance 0.43 m
Wheelbase 3.37 m
Length to face of forks 6.15 m
Overall width 2.48 m
Overall height 2.99 m
Overall cab width 0.95 m
Tilt-up angle 12 °
Tilt-down angle 104 °
External turning radius (over tyres) 5.20 m
Forks length / width / section 1,200 mm x 180 mm / 75 mm
Frame leveling corrector 9 °

Wheels


Description Unit
Standard tyres 17.5-R25
Number of front wheels / rear wheels 2 / 2
Drive wheels (front / rear) 2 / 2
Steering mode 2-wheel steer; 4-wheel steer; Crab mode

Engine


Description Unit
Engine brand Yanmar
Engine norm Stage V / Tier 4
Engine model 4TN107FTT-6SMU1
Number of cylinders / Capacity of cylinders 4 – 4,567 cm³
I.C. Engine power rating / Power 173 Hp / 127 kW
Max. torque / Engine rotation 805 Nm @ 1,500 rpm
Engine cooling system Water
Number of batteries 2
Battery voltage 12 V
Drawbar pull 11,770 daN

Transmission


Description Unit
Transmission type Hydrostatic
Number of gears (forward / reverse) 2 / 2
Max. travel speed 25 km/h
Parking brake Automatic negative parking brake
Service brake Oil-immersed multi-discs braking on front & rear axles
Gradeability (laden / unladen) 32.40 % / 55.40 %

Hydraulics


Description Unit
Hydraulic pump type Variable displacement pump
Hydraulic flow – Pressure 185 l/min – 350 bar

Tank Capacities


Description Unit
Engine oil 13 l
Hydraulic oil 290 l
Fuel tank 315 l
Diesel Exhaust Fluid (AdBlue® type) 24 l

Noise & Vibration


Description Unit
Noise at driving position (LpA) 75 dB
Noise to environment (LwA) 108 dB
Vibration on hands/arms < 2.50 m/s²

Miscellaneous


Description Unit
Safety cab homologation Cabin ROPS – FOPS level 2
Controls JSM
Attachment recognition system (E-Reco) Standard

Machine on Tyres with Forks LC 1,200mm (Metric)
Manitou MHT 10160 ST5 Forks 1200mm Load Chart
Machine on Tyres with Forks LC 600mm (Metric)
Manitou MHT 10160 ST5 Forks 600mm Load Chart
Machine on Tyres with Platform (Metric)
Manitou MHT 10160 ST5 Platform Load Chart
3-Hook Jib 16,000kg (Metric)
Manitou MHT 10160 ST5 3-Hook Jib 16,000kg Load Chart
Cylinder Handler CH 4 (Metric)
Manitou MHT 10160 ST5 Cylinder Handler Load Chart
Tyre Handler TH 51 (Metric)
Manitou MHT 10160 ST5 Handler Load Chart
