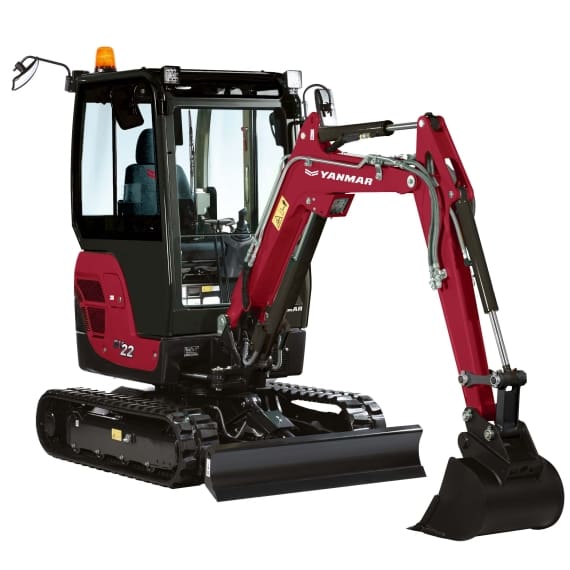

YANMAR MINI-EXCAVATORS SV22

  • Operating weight = 2120/ 2260
  • Transport weight = 2045 / 2185
  • Type = 3TNV76-SBVA2
  • Engine/Battery = 12 V - 45 Ah
  • Fuel = Diesel
  • Net Power = 13.4 kW/18.2 HP/2 200 rpm
  • Gross Power = 13.8 kW/18.75 HP/2 200 rpm
  • Displacement = 1.116 liters
  • Maximum torque = 66.3 - 69 N.m (1 600 rpm)
  • Maximum pressure = 210 bar
  • Travel speed = 2.4/4.1 km/h
  • Digging force (arm) = 12kN
  • Digging force (bucket) = 19 kN
  • Noise level = LwA: 92 dBA/LpA: 81 dBA
  • Gradeibility = 30°
  • Overall length = 3775
  • Overall height = 2320/2360
  • Overall width = 1380
  • Track Width = 250
  • Length of track on ground = 1450
  • Minimum ground clearance = 280
  • Max. digging depth – Blade lowered = 2650
  • Max. digging reach = 4240
  • Boom swinging (base to left/right) = 40° / 80°
  • Arm length = 1200
  • Rear turning radius = 980
DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS SV22

Read More

The Yanmar SV22 mini excavator is built for operators who need compact dimensions, dependable stability and strong day-to-day performance across a wide range of jobs. With its ultra-short swing radius, lightweight design and easy trailer transportability, the SV22 is a practical choice for urban renewal, grading, landscaping and general site work where access, manoeuvrability and productivity all matter.

Powered by a Yanmar 3TNV76 engine, the Yanmar SV22 mini excavator delivers efficient and reliable performance with low emissions and quiet operation. Its flow-sharing closed-centre hydraulic system is designed to provide precision, flexibility and smooth simultaneous movements, helping operators stay in control when digging, lifting or using attachments. Exceptional stability is another major strength, with Yanmar’s VICTAS system, wide counterweight and balanced weight distribution all working together to improve lifting capability and confident operation on site.

Operator comfort and ease of use are built in too. The SV22 offers a spacious cab, excellent visibility, intuitive controls and a digital interface that gives the operator clear real-time machine information. Simple access to key service points also helps reduce maintenance time and supports strong on-site availability. For businesses looking for a Yanmar SV22 mini excavator, Locators can supply a compact and capable machine suited to demanding working environments.
