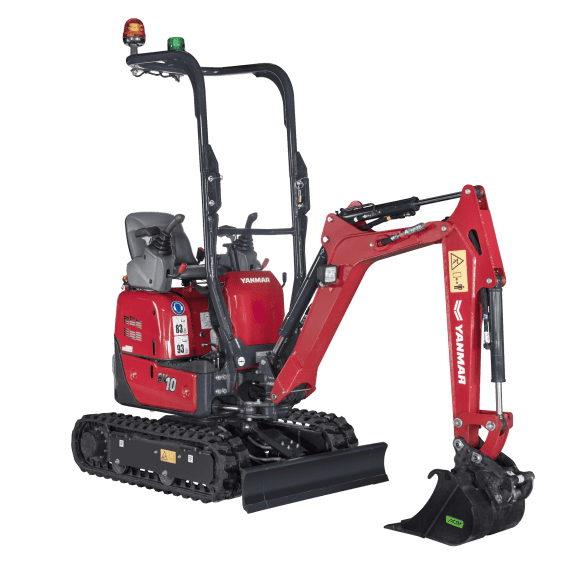

YANMAR MINI-EXCAVATORS SV10

  • Operating weight = 1180
  • Transport weight = 1055
  • Type = 3TNV70-WBVB1
  • Net Power = 9,2 kW – 2000 rpm
  • Gross Power = 9,3 kW – 2000 rpm
  • Displacement = 0,854 liter
  • Maximum torque = 47,6 – 51,8 N.m (1500 +/- 100 rpm)
  • Maximum pressure = 190 bar
  • 1 gear pump = 6.79 l/min
  • Travel speed = 1,8/3,6 km/h
  • Digging force (arm) = 5.2 kN
  • Digging force (bucket) = 7,6 kN
  • Noise level = LwA: XX dBA/LpA: XX dBA
  • Overall length = 2810
  • Overall height = 2300
  • Overall width = 740 / 990
  • Length of track on ground = 970
  • Blade distance = 840
  • Minimum ground clearance = 125
  • Max. digging depth – Blade lowered = 1955
  • Max. digging reach = 3180
  • Max. dumping height = 2010
  • Boom swinging (base to left/right) = 60° / 60°
  • Arm length = 590
DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS SV10

Read More

The Yanmar SV10 mini excavator is built for operators who need ultra-compact dimensions, intuitive control and dependable performance in the tightest working areas. Purpose-built for indoor work, landscaping and restricted access jobs, the SV10 combines an ultra-narrow design with a variable undercarriage, allowing it to pass through standard doorways and work confidently where larger machines cannot. That makes it a practical choice for renovation, utility work and small-site construction where access and manoeuvrability matter.

Powered by a Yanmar 3TNV70-WBVB1 engine delivering 9.2 kW net power, the Yanmar SV10 mini excavator offers smooth, efficient performance with the flexibility needed for day-to-day site work. With an operating weight of 1,180 kg, overall width of just 740 mm retracted and 990 mm extended, and maximum digging reach of 3,180 mm, it gives operators a strong balance of compact access and useful working range. Side-lever ergonomics help make operation more intuitive, while ROPS protection and easy maintenance access support safe and practical ownership.

For businesses looking for a Yanmar SV10 mini excavator, Locators offers more than just the machine itself. We back every solution with expert advice, practical support and dependable aftersales care, helping you choose equipment that fits your site, your operators and your wider operation.
