YANMAR MINI-EXCAVATORS SV19VT

  • Operating weight = 1880
  • Transport weight = 1750
  • Type = Yanmar Diesel Stage V 3TNV76-QBVA
  • Net Power = 13,1 kW – 2100 rpm
  • Gross Power = 13,5 kW – 2100 rpm
  • Displacement = 1,116 liter
  • Maximum torque = 63,4 – 69,2 N.m (1600 +/- 100 rpm)
  • Maximum pressure = 220 ba
  • Travel speed = 2,4 / 4,4 km/h
  • Digging force (arm) = 11,4 kN / 9,3 kN
  • Digging force (bucket) = 16,7 kN
  • Noise level = LwA: 91 dBA/LpA: 80 dBA
  • Overall length = 3620/3620
  • Overall height = 2320/2330
  • Overall width = 980/1320
  • Length of track on ground = 1185
  • Blade distance = 1120/1405
  • Minimum ground clearance = 160
  • Max. digging depth – Blade lowered = 2600/2880
  • Max. digging reach = 3910/4185
  • Max. dumping height = 2565/2780
  • Boom swinging (base to left/right) = 75° / 60°
  • Arm length = 960/1250
  • Rear turning radius = 1060/1130
DATA SHEET
sPEAK TO A SPECIALIST

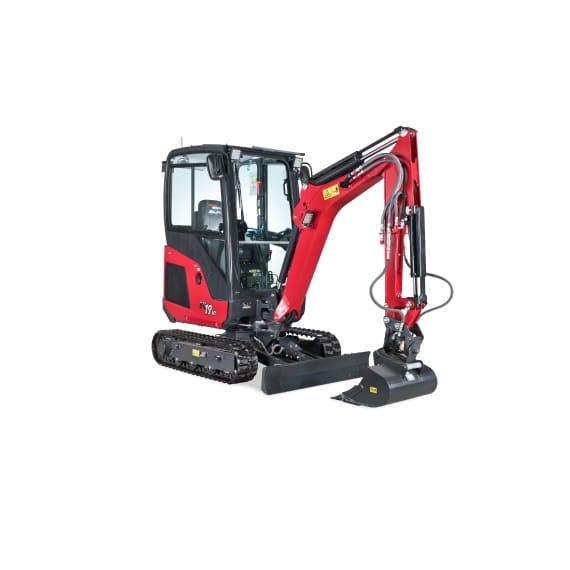

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS SV19VT

Read More

The Yanmar SV19VT mini excavator is built for operators who need compact dimensions, smooth performance and the flexibility to work efficiently across a wide range of applications. Designed to be robust, reliable and highly versatile, the SV19VT combines strong digging capability with class-leading in-cab technology to help improve operator productivity on site.

Powered by a Stage V Yanmar diesel engine delivering 13.1 kW net power, the Yanmar SV19VT mini excavator is designed to offer the right balance of speed, smoothness and dependable performance. Yanmar’s ViPPS hydraulic system helps deliver precise and efficient operation, while the extendable undercarriage allows the machine to retract to just 980 mm for access through tighter spaces before expanding to 1,320 mm for added stability during work.

Its extended working range also makes it a practical choice for groundwork, landscaping and general construction. With operating weight up to 1,970 kg, digging depth up to 2,885 mm and reach up to 4,185 mm depending on specification, the SV19VT gives operators a compact machine that still delivers impressive day-to-day capability. Best-in-class safety, ergonomic layout and simple maintenance access add to its appeal for businesses that need productivity without unnecessary downtime.

For businesses looking for a Yanmar SV19VT mini excavator, Locators offers a compact and capable machine suited to demanding site work, backed by practical advice and dependable support.
