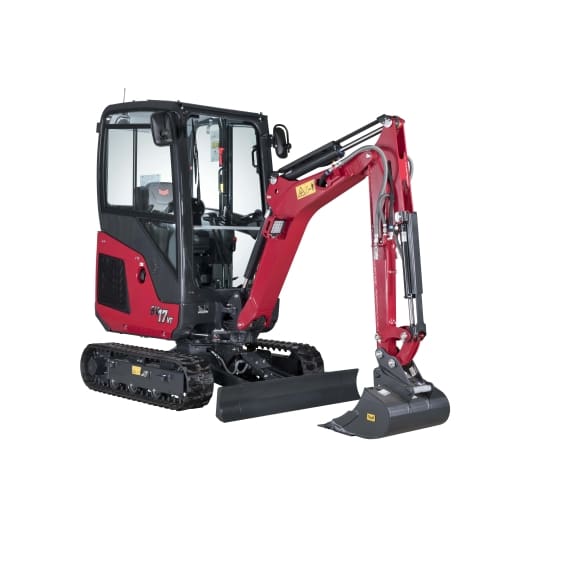

YANMAR MINI-EXCAVATORS SV17VT

  • Operating weight = 1700
  • Transport weight = 1570
  • Type = Yanmar Diesel Stage V 3TNV70-PBVA
  • Net Power = 11,3 kW – 2400 rpm
  • Gross Power = 11,5 kW – 2400 rpm
  • Displacement = 0,854 liter
  • Maximum torque = 48,8 – 53,2 N.m (1800 +/- 100 rpm)
  • Maximum pressure = 210 bar
  • Travel speed = 2,4 / 4,8 km/h
  • Digging force (arm) = 9,9 kN / 8,9 kN
  • Digging force (bucket) = 16 kN
  • Noise level = LwA: 91 dBA/LpA: 81 dBA
  • Overall length = 3 475 mm / 3 445 mm
  • Overall height = 2320 mm / 2 330 mm
  • Overall width = 980 mm / 1 320 mm
  • Length of track on ground = 1185
  • Blade distance = 1120/1405
  • Minimum ground clearance = 160
  • Max. digging depth – Blade lowered = 2600/2750
  • Max. digging reach = 3910/4055
  • Max. dumping height = 2560/2675
  • Boom swinging (base to left/right) = 75° / 60°
  • Arm length = 1100/1250
  • Rear turning radius = 1050
DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS SV17VT

Read More

The Yanmar SV17VT mini excavator is built for operators who need compact dimensions, strong day-to-day performance and the flexibility to work efficiently across a wide range of sites. Designed to be versatile, powerful and adaptable, the SV17VT combines impressive working range, outstanding stability and smooth hydraulic control in a compact machine that is easy to transport and simple to operate.

Powered by a Stage V Yanmar diesel engine delivering 11.3 kW net power, the Yanmar SV17VT mini excavator is engineered for productive work with low fuel consumption and dependable reliability. Its advanced hydraulic setup and extendable undercarriage help give operators the balance of compact access and on-site stability they need, with overall width adjustable from 980 mm to 1,320 mm. With operating weight up to 1,790 kg, digging depth up to 2,755 mm and reach up to 4,055 mm depending on specification, it delivers the capability of a much larger machine while remaining highly manoeuvrable.

Operator comfort is a key part of the design too. Yanmar positions the SV17VT around ergonomic layout, intuitive controls, safety-conscious design and easy maintenance, helping reduce fatigue and keep downtime under control. For businesses looking for a Yanmar SV17VT mini excavator, Locators offers more than just the machine itself. We back every solution with expert personal service, practical independent advice and dependable aftersales support, helping you choose the right equipment for your site, your operators and your wider operation.
