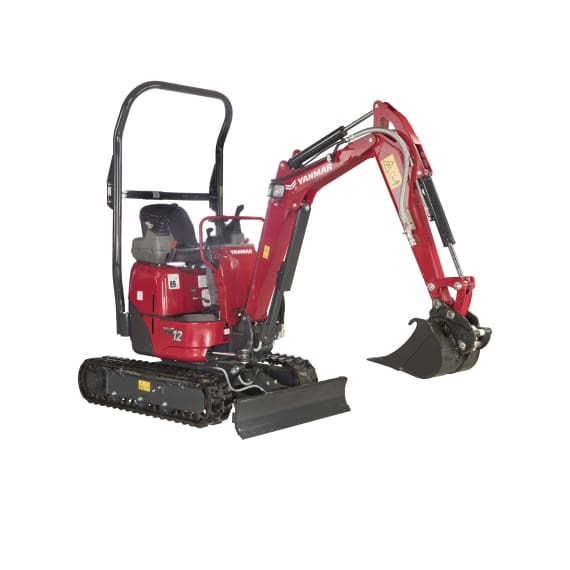

YANMAR MINI-EXCAVATORS ViO12-2A

  • Operating weight = 1245
  • Transport weight = 1170
  • Type = Yanmar Diesel Stage V 3TNV70-WBVB
  • Net Power = 9,2 kW – 2000 rpm
  • Gross Power = 9,3 kW – 2000 rpm
  • Travel speed = 2,1 / 4 km/h
  • Digging force (arm) = 5,8 kN
  • Digging force (bucket) = 13,9 kN
  • Noise level = LwA: 89 dBA/LpA: 73 dBA
  • Overall length = 3040
  • Overall height = 1580/2250mm**
  • Overall width = 1000/830*
  • Length of track on ground = 1120
  • Blade distance = 940
  • Minimum ground clearance = 140
  • Max. digging depth – Blade lowered = 2050
  • Max. digging reach = 3350
  • Max. dumping height = 2370
  • Boom swinging (base to left/right) = 45° / 85°
  • Arm length = 980
  • Rear turning radius = 650/780
DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS ViO12-2A

Read More

The Yanmar ViO12-2A mini excavator is built for operators who need compact dimensions, low fuel consumption and dependable day-to-day performance on restricted sites. Designed with an extendable undercarriage, the ViO12-2A can work as a zero-tail machine while also delivering extra stability and improved lifting capability, making it a practical choice for landscaping, utilities, groundwork and light construction work.

Compact but capable, the Yanmar ViO12-2A mini excavator combines a Stage V Yanmar diesel engine with strong hydraulic performance and a robust monoblock chassis for dependable operation. Longer tracks, durable parts and axial piston pumps all help support stability, reliability and smooth performance in daily use. With an operating weight of 1,245 kg, transport weight of 1,170 kg, net power of 9.2 kW and overall width adjustable from 830 mm to 1,000 mm, it offers the flexibility needed for work in tighter access areas without giving away useful digging capability.

The ViO12-2A is also designed to be easy and comfortable to use, while keeping maintenance simple. With digging depth up to 2,050 mm, digging reach up to 3,350 mm and dumping height up to 2,370 mm, it gives operators a compact machine that still delivers practical on-site productivity. For businesses looking for a Yanmar ViO12-2A mini excavator, Locators supplies equipment with the expert advice, personal service and dependable support needed to help you choose the right machine for your operation.
