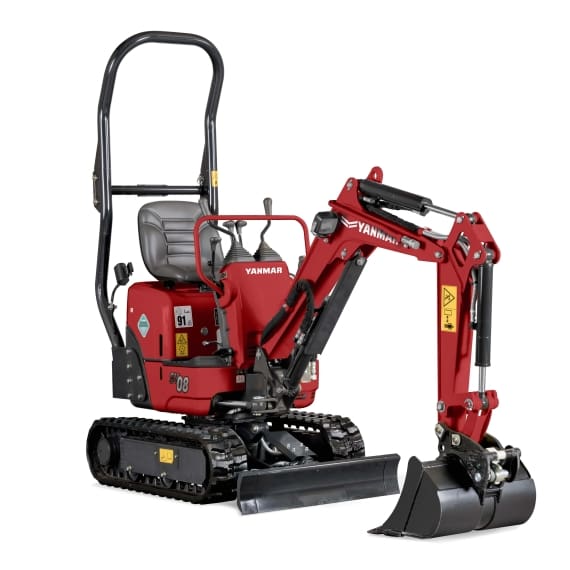

YANMAR MINI-EXCAVATORS SV08-1C

  • Operating weight = 1035
  • Transport weight = 960
  • Type = 402J-05 IG84555R
  • Net Power = 7,5 kW – 2400 rpm
  • Gross Power = 7,7 kW – 2400 rpm
  • Displacement = 507 cm3
  • 1 double gear pump = 2 x 9,8 l.min
  • Travel speed = 1,8 km/h
  • Digging force (arm) = 5,9 kN
  • Digging force (bucket) = 10 kN
  • Noise level = LwA: 92 dBA
  • Overall length = 2600
  • Overall height = 2200
  • Overall width = 840/680*
  • Blade distance = 820
  • Minimum ground clearance = 130
  • Max. digging depth – Blade lowered = 1570
  • Max. digging reach = 2830
  • Max. dumping height = 1940
  • Boom swinging (base to left/right) = 45° / 85°
  • Arm length = 670
  • Rear turning radius = 725
DATA SHEET
sPEAK TO A SPECIALIST

LEARN MORE ABOUT THE YANMAR MINI-EXCAVATORS SV08-1C

Read More

The Yanmar SV08-1C mini excavator is built for operators who need maximum compactness, easy transport and dependable performance in the tightest working environments. Designed for work both indoors and outdoors, the SV08-1C is exceptionally compact and highly versatile, making it a strong choice for landscaping, renovation, utility work and small-scale construction where access is limited but productivity still matters.

Powered by a high-performance engine delivering 7.5 kW net power, the Yanmar SV08-1C mini excavator combines smooth operation with the stability needed for demanding day-to-day tasks. Its advanced hydraulic system, extendable undercarriage and compact overall width of 840 mm retracted to 680 mm help operators work efficiently in confined spaces while maintaining control and confidence on site. With an operating weight of 1,035 kg, transport weight of 960 kg, digging depth of up to 1,570 mm and digging reach of up to 2,830 mm, it offers practical capability in a very compact footprint.

Ease of ownership is a major strength too. Yanmar positions the SV08-1C around fast, easy maintenance, strong safety features and dependable all-round usability, helping businesses reduce downtime and keep work moving. For customers looking for a Yanmar SV08-1C mini excavator, Locators provides more than just the machine itself. We back every solution with expert personal service, professional independent advice and dependable support, helping you choose the right equipment for your site and your wider operation.
